WPM METAL SHEET WATERSTOP R/L

WPM METAL SHEET WATERSTOP R/L

https://lva.primostar.eu/web/image/product.template/8416/image_1920?unique=682a64d

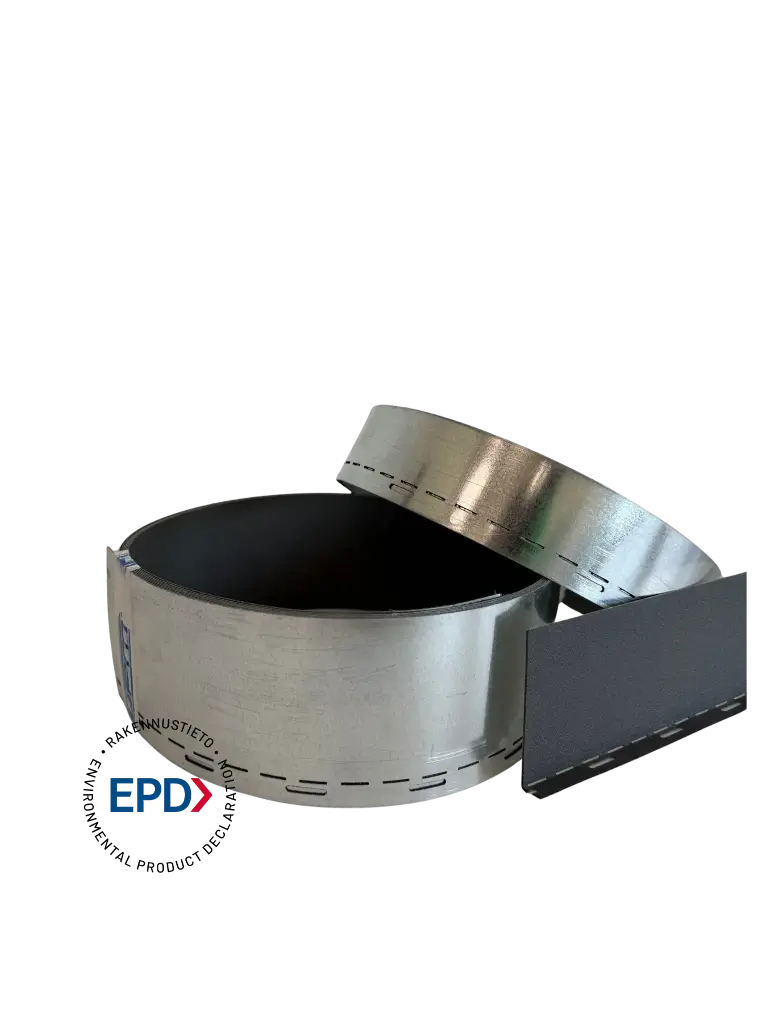

Construction joint sheet for underground concrete structure

AREA OF APPLICATION:

WPM® METAL SHEET WATERSTOP R/L is used to waterproof construction joints like floor-wall, wall-wall, floor-floor, and wall-ceiling against pressurized water in various below-grade reinforced concrete structures. The most common use areas are parking houses, water tanks, etc.

PROPERTIES:
  • Special coating, can be selected according to the place of use
  • • Can be installed with installation fixers
  • • Easy to connect with deformation PVC joint tapes
  • • Watertight against pressurized water up to 24 m (2.4 bar), officially tested at TalTech University - N° 372-A/19
  • • Tested for water pressure up to 15 bar - test protocol no.1/2024
  • • Made in Estonia
SPECIFICATIONS:
  • • Steel material: galvanized steel
  • • Steel sheet height: as selected
  • • Steel sheet thickness: 0,5 mm
  • • Coating: as selected
  • • Temperature resistance: -35°C - +75°C
  • • Working temperature: no limits
PACKAGE:
Width 155+20 / 125+20 - all coatings
Box: 3 x 7,5 m detail, joint clips, 2 fixing glue tubes
Widht 65+20 - all coatings
Box: 4 x 7,5 m detail, joint clips, 2 fixing glue tubes


$ 0,00 0.0 USD $ 0,00 Bez PVN

Not Available For Sale

($ 0,00 / gab.)
  • platums
  • pārklājums
  • Pārdošanas iepakojums
  • Marka

Šāda kombinācija nepastāv.

WPM
Kontakti

Noteikumi un nosacījumi
30 dienu naudas atmaksas garantija
Piegāde: 2-3 darba dienas

Kopīgot


  • Special coating, elastic, not reactive with water
  • The mineral coating turns homogeneous with concrete
  • Can be installed directly into the fresh concrete
  • Can be installed with installation fixers
  • Easy to connect with deformation PVC joint tapes
  • Официально протестировано в Университете TalTech – Тест № 372-A/19
  • Обеспечивает водонепроницаемость до 2,4 бар
  • Izgatavots Igaunijā< /span>


WPM® METAL SHEET WATERSTOP 125R is used to waterproof construction joints like floor-wall, wall-wall, floor-floor, and wall-ceiling against pressurized water in various below-grade reinforced concrete structures. The most common use areas are parking houses, water tanks, etc.

Start with the customer – find out what they want and give it to them.

Ehitusvuukidesõlmed

Here, you can find all construction nodes that we watertight with our materials, such as floor-wall, wall-ceiling, crack inducing waterstop and etc...

Vaata rohkem

Paigaldusvideo

Vaata, kui lihtne on paigaldada vuugiplekki põranda-seina konstruktsiooni töövuuki.




References

Tehtud tööde lehelt leiad rohkem projekte, kus oleme kasutanud töövuugiprofiili.

Rohkem tehtuid töid


Упаковки
  • 1 metrs
  • 30 pcs



Упаковки
  • 1 metrs
  • 30 pcs



Упаковки
  • 1 metrs
  • 30 pcs


Specifications

platums 155+20, 125+20, 65+20
pārklājums polimēru pārklājums, polimēru pārklājums + aizsargplēve, bitumens + bitumena pārklājums, bitumena pārklājums, Suitable for drinking water, polimēru + polimēru pārklājums
Pārdošanas iepakojums Box (3x7,5m), Box (4x7,5m)
Marka WPM
