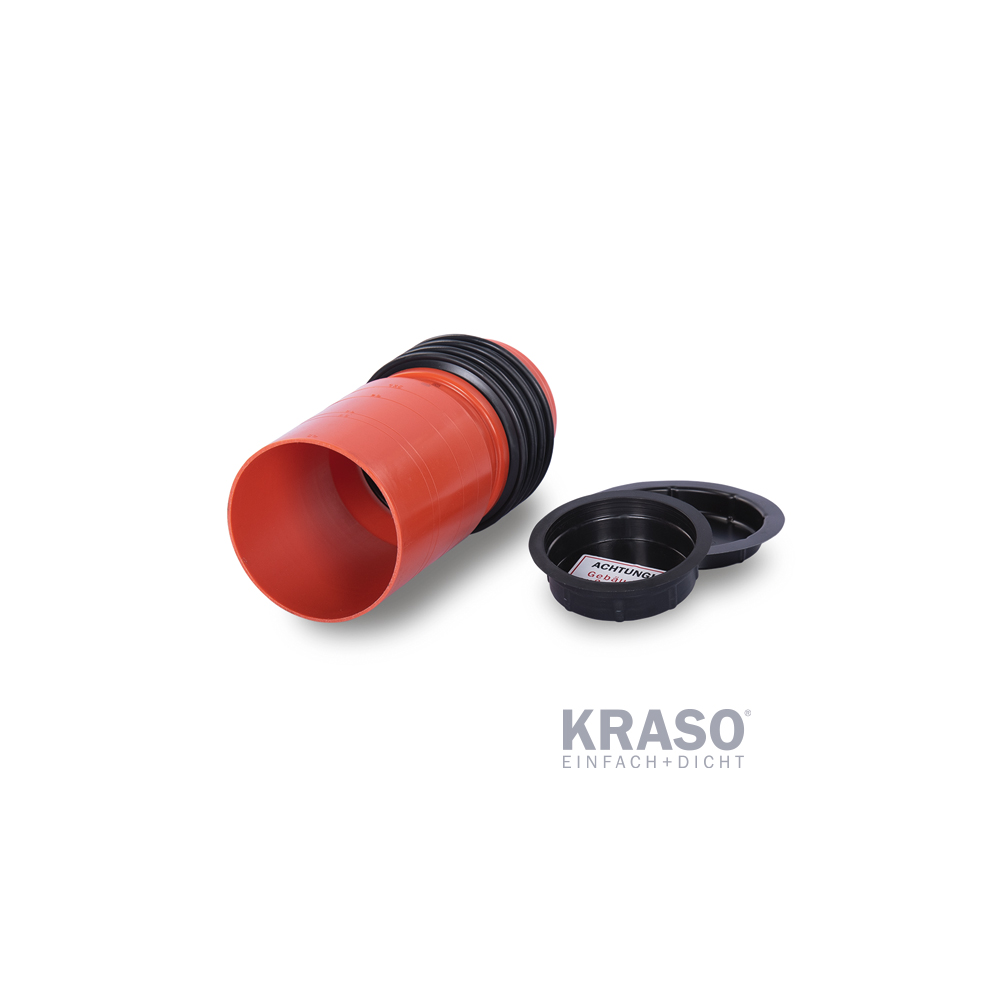

KRASO Wall Penetration Type Universal (piece)
In accordance with DIN EN 1401, for installation in waterproof concrete walls, for connection to KG/HT pipes on both sides (Uni B) or for KG/HT pipes to be pushed through (Uni D), with water pressure tight surrounding KRASO 4 Seal, with markings for a simple shortening on-site to standard wall thicknesses | DafStB waterproof concrete guideline: stress class 1 + 2
The proven wall penetration made
of solid wall material
+ KRASO 4 Seal - MPA-tested up to 10 bar!
+ IAF-tested: radon tight!
+ Dimensionally and pressure resistant solid wall material: low abrasion, easy installation at low temperatures
+ In accordance with DIN EN 1401 (KG)
+ KRASO Type Universal B: with formed plug-in sleeve on both sides for the connection of
KG/HT pipes on both sides
+ KRASO Type Universal D: with integrated push-through sleeve
+ Markings for a simple shortening on-site to standard wall thicknesses
+ Including two KRASO Covers as installation aid
+ DafStB waterproof concrete guideline: stress class 1 + 2
SPECIFIKĀCIJAS
| Diametrs DN | 110, 125, 160 |
| Tips Universāls | Universal B, Universal D |
Sūtiet pieprasījumu vai zvaniet mūsu projektu vadītājam, ja jums ir jautājumi par to, kā mēs varam palīdzēt ar mūsu hidroizolācijas risinājumiem.
