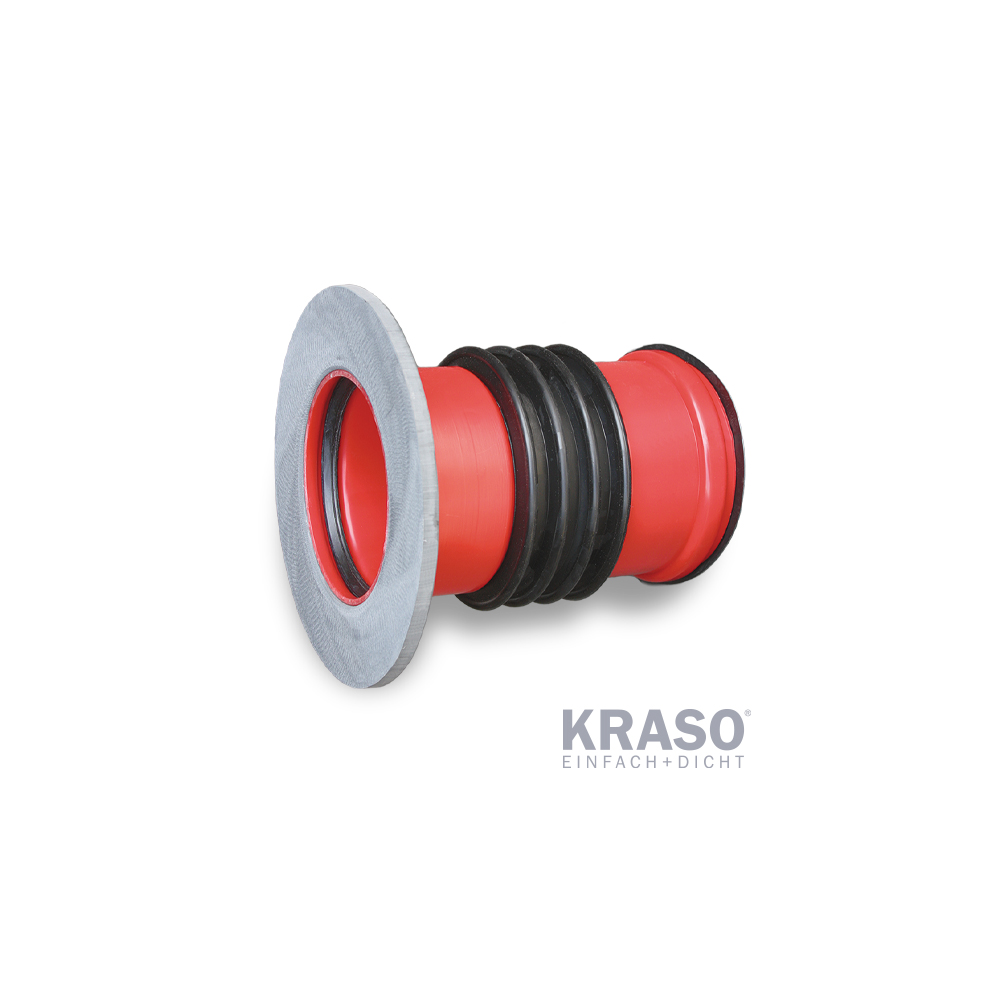

KRASO Wall Penetration Type B/SF 4 (piece)
For installation in waterproof concrete walls for connection to KG/ HT pipes on both sides, with trowel flange on one side, roughened (KRASO Type B/SF 5 - R) or tissue coated (KRASO Type B/SF 5 - G) for the secure connection of bitumen thick coating (e.g. KMB) and reactive sealings, surrounding approx. 5 cm, formed plug-in sleeve on both sides and 2 KRASO Covers as an installation aid | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
Secure connection of bitumen and reactive sealings
+ Dimensionally stable and pressure-resistant solid wall material: low abrasion, installation even at lower temperatures
+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)
+ KRASO 4 Seal - MPA-tested up to 10 bar!
+ IAF-tested: radon-tight!
+ Surrounding approx. 5 cm trowel flange on one side, for secure connection of bitumen thick coating such as KMB or reactive sealings: roughened or tissue coated
+ Also available: trowel flange made of PP with dovetail groove as KRASO Type B/SF 5 - KG 2000 for the secure gripping of bitumen thick coating
+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
Specifications
| Diametrs DN | 110, 125, 160, 200, 250, 315 |
| sienas biezums cm | 20, 30, 40, 50, 24, 25, 35, 36,5, 45 |
| B/SF 4 | raupja, ar audu pārklājumu |
Sūtiet pieprasījumu vai zvaniet mūsu projektu vadītājam, ja jums ir jautājumi par to, kā mēs varam palīdzēt ar mūsu hidroizolācijas risinājumiem.
