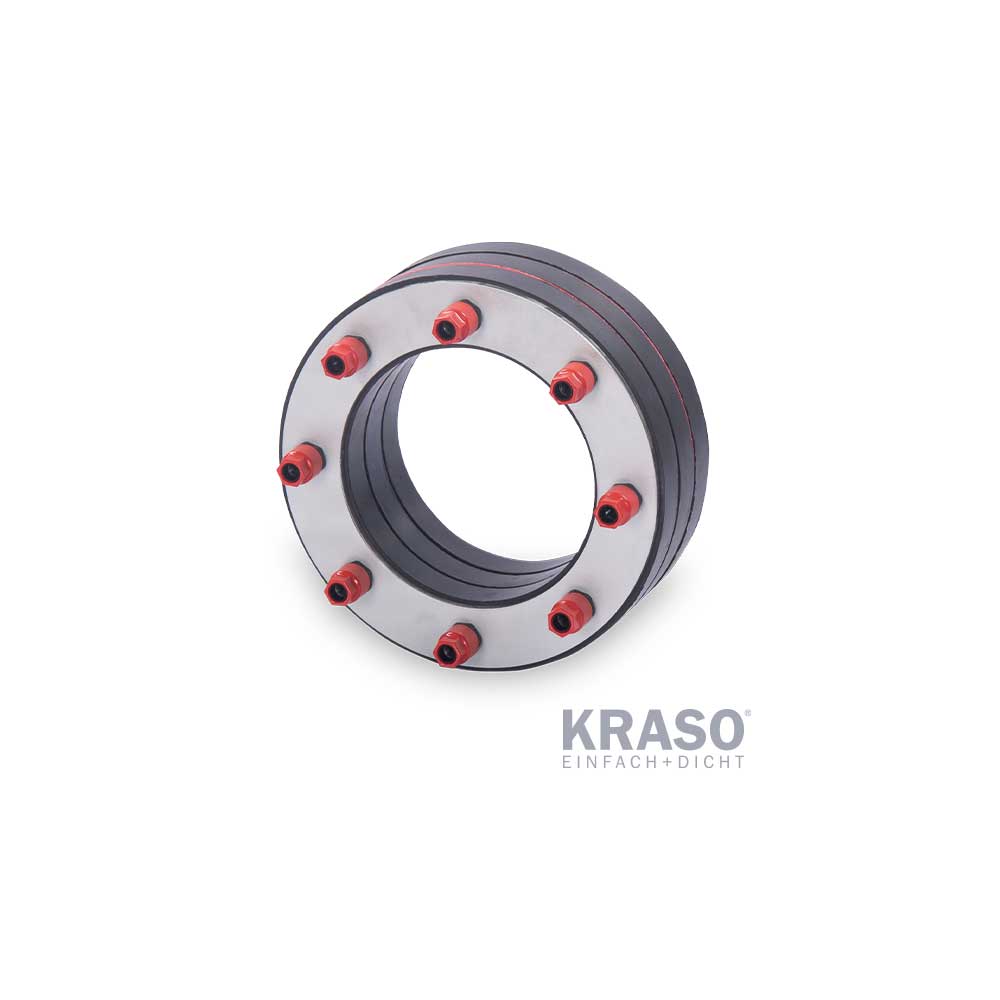

KRASO Sealing Insert Type TD-X (piece)
for installation of pipes, Torque Control Nut KRASO DKM* | DafStB waterproof concrete guideline: stress class 1 + 2
The trio seal of a superior class
+ For core drillings or casings
+ 20% thicker steel plates made of non-corrosive stainless steel V2A!
+ Triple sealing with a 60 mm seal made of specially developed sealing rubber!
+ Two circular pressure disks guarantee optimal pressure distribution!
+ More studs for even pressure distribution, welded-on studs instead of through-bolts!
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ MPA-tested: protects reliably against pressurised water up to 10 bar!
+ Gas and odour tight - high-quality in terms of TA-Air!
+ Radon tightness IAF-tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!
+ Certified with the quality seal of the FHRK e. V.
+ DafStB waterproof concrete guideline: stress class 1 + 2
Dokumenti
SPECIFIKĀCIJAS
| Serdes cauruma diametrs vai KRASO apvalks mm | 80, 100, 125, 150, 200, 250, 300, 400, 500 |
| Caurules vai kabeļa diametrs mm | 22 - 35, 32 - 35, 40 - 43, 48 - 50, 60 - 63, 75 - 77, 78 - 80, 88 - 90, 108 - 110, 114 - 118, 123 - 125, 133 - 135, 139 - 140, 158 - 160, 168 - 170, 177 - 180, 200, 210, 219, 225, 250, 273, 280, 315, 326, 400, 429, 450 |
Sūtiet pieprasījumu vai zvaniet mūsu projektu vadītājam, ja jums ir jautājumi par to, kā mēs varam palīdzēt ar mūsu hidroizolācijas risinājumiem.
