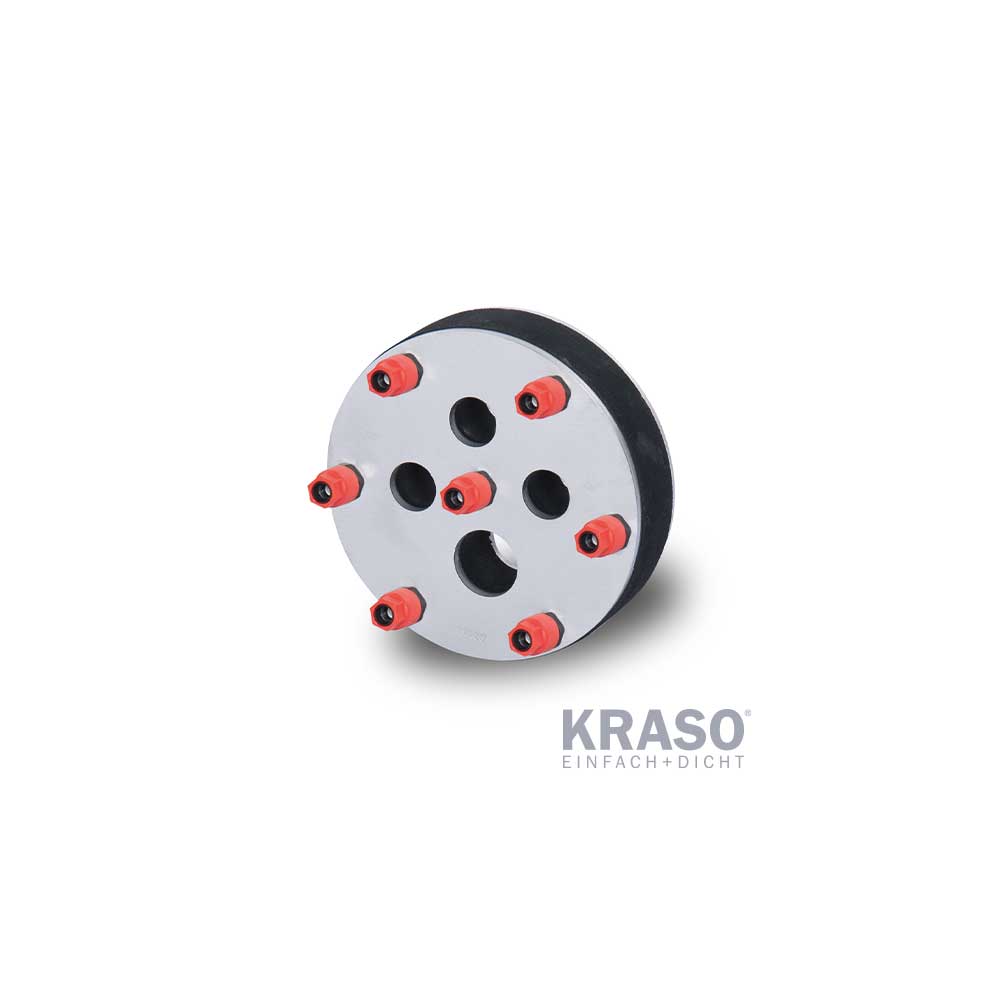

KRASO Sealing Insert Type SD 30 (piece)

https://lva.primostar.eu/web/image/product.template/6577/image_1920?unique=7b6f1cc


for installation of pipes or cables, Torque Control Nut KRASO DKM*

KRASO Type SD 30 / KRASO Type SD 30 - T, split / KRASO Type SD 30 - GF, large flange
KRASO Type SD 60 / KRASO Type SD 60 - T, split / KRASO Type SD 60 - GF, large flange
| DafStB waterproof concrete guideline: stress class 1 + 2


The solution for special situations

For core drillings and casings
+ Individual and custom-made solution: with large flange or split!
+ KRASO Sealing Insert quality: 5 mm thick clamping plates made of non-corrosive stainless steel V2A, 30 or 60 mm seal made of a specially developed rubber mixture, welded-on studs instead of through bolts

+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
MPA-tested: protects reliably against pressing water up to 2,5 / 5 bar!
Gas and odour tight - High-quality in terms of TA-Air!

Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!

Certified with the quality seal of the FHRK e. V.

+ With arrangement template: see the arrangement at a glance!
Generally available within 24 hours!
+ Available at an additional charge: stainless steel V4A / KTW - recommendation / NBR - oil- and petrol resistant / temperature resistant up to 220°C
+ DafStB waterproof concrete guideline: stress class 1 + 2

122,39 € 122.39 EUR 122,39 € Bez PVN

Not Available For Sale

(122,39 € / gab.)
  • Tips SD
  • Serdes cauruma diametrs vai KRASO apvalks mm
  • Cauruļu vai kabeļu caurumi

Šāda kombinācija nepastāv.

Specifications

Tips SD SD 30, SD 30 - E, SD 30 - GF, SD 30 - T
Serdes cauruma diametrs vai KRASO apvalks mm 50, 60, 70, 80, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500, 700, 900
Cauruļu vai kabeļu caurumi 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
