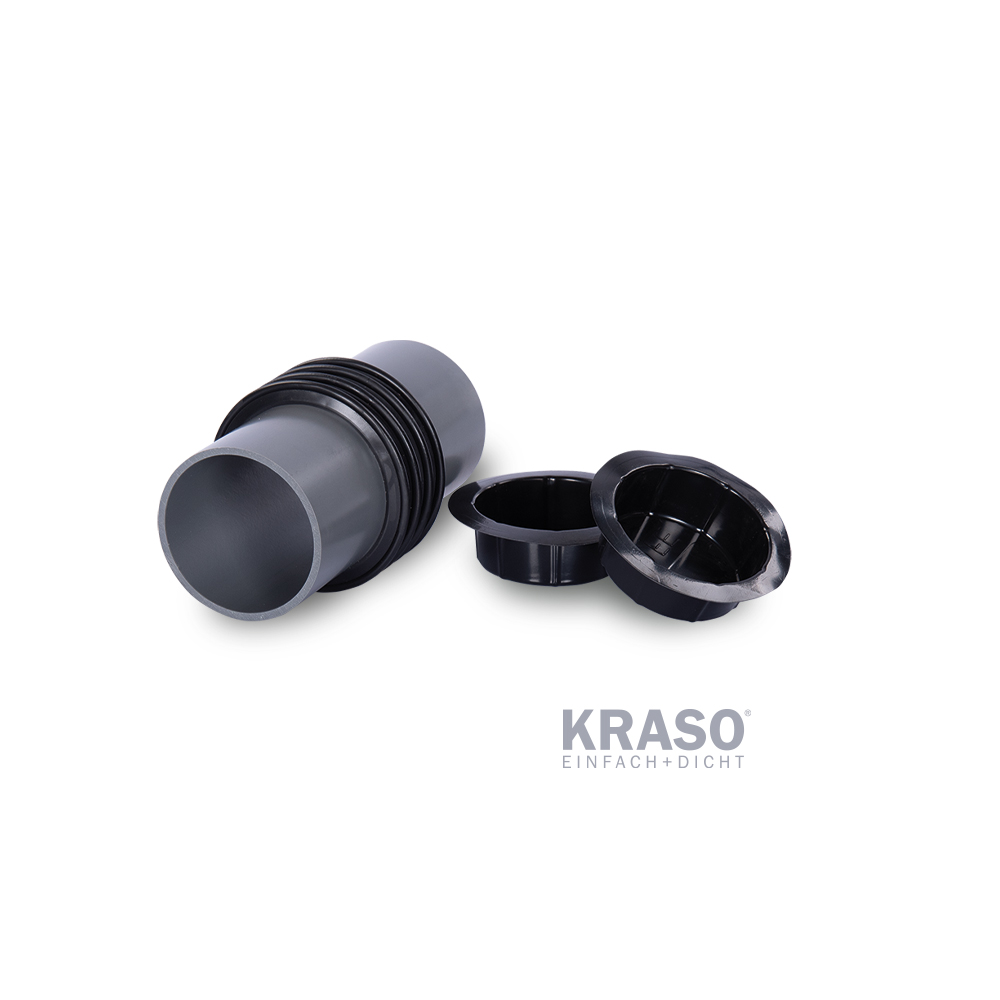

KRASO Casing Type FE - casing true diameter (piece)
Recess for retrofit installation of cables or pipes using a sealing insert (not included in the scope of supply) • plastic - true diameter casing with reinforced inner core, with eyelets, shear key and enclosed fixed claw as an installation aid, ID = InternalDiameter true diameter casing | DafStB waterproof concrete guideline: stress class 1 + 2
For all diameters!
+ Thick-walled true diameter plastic casing for concreting
+ KRASO 4 Seal – MPA-tested up to 10 bar! Gas- and odour-tight – high-quality in terms of TA-Air!
+ IAF-tested: radon-tight!
+ Certified with the quality seal of the FHRK e. V.
+ Material and processing: weatherproof, impact-resistant plastic, KRASO 4 Seal joined monolithically to the plastic pipe by vulcanization
+ Every diameter and every wall thickness available at short notice! If necessary, the size can be adapted individually on the construction-site!
+ Low weight: easy handling, simple installation, low transport costs!
+ Including installation covers! No pre-treatment required!
+ DafStB waterproof concrete guideline: stress class 1 + 2
SPECIFIKĀCIJAS
| Iekšējā diametra ID | 80, 250, 100, 125, 150, 200, 300 |
| sienas biezums cm | 20, 30, 40, 50, 24, 25, 35, 36,5, 45 |
Sūtiet pieprasījumu vai zvaniet mūsu projektu vadītājam, ja jums ir jautājumi par to, kā mēs varam palīdzēt ar mūsu hidroizolācijas risinājumiem.
