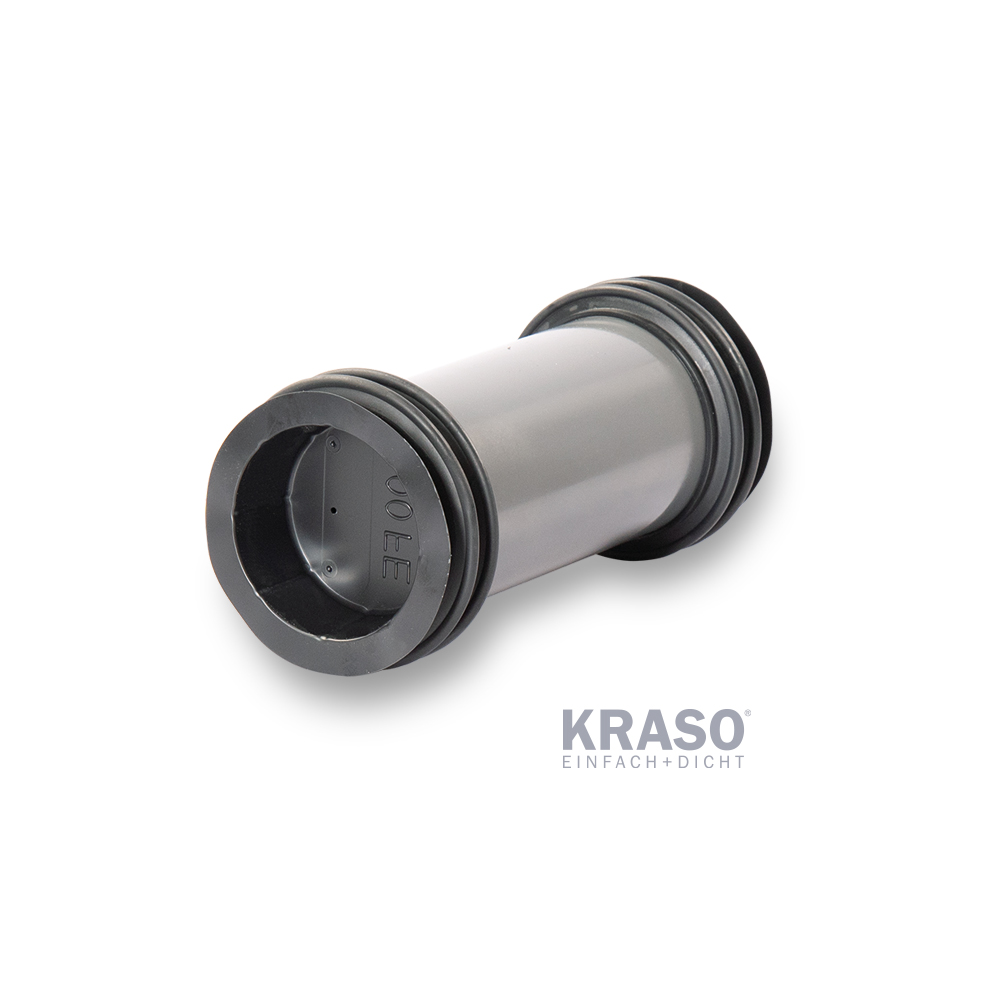

KRASO Casing Type DFW/FE - triple wall (piece)
- specially made for precast factories -
For the installation into triple walls, thick-walled plastic casing true diameter for concreting, as a recess for retrofit installation of pipes or cables using a sealing insert (not included in the scope of supply), water pressure tight surrounding KRASO 2 Seal on both sides (KRASO Type DFW/FE 4), KRASO 2 Seal on one side and water pressure tight surrounding KRASO 4 Seal in the middle (KRASO Type DFW/FE 6), KRASO 2 Seal on both sides and central water pressure tight surrounding KRASO 4 Seal (KRASO Type DFW/FE 8), 2 KRASO Covers as an installation aid, ID = InternalDiameter of true diameter casing | DafStB waterproof concrete guideline: stress class 1 + 2
Easy and secure sealing in precast walls
+ For the installation in triple wall elements: stop occuring water at the outer shell
+ KRASO Type DFW 4: KRASO 2 Seal on both sides - MPA-tested up to 3,5 bar
+ KRASO Type DFW 6: KRASO 2 Seal on both sides, central KRASO 4 Seal - MPA-tested up to 10 bar!
+ KRASO Type DFW 8: KRASO 2 Seal on both sides, central KRASO 4 Seal - MPA-tested up to 10 bar!
+ IAF-tested: radon-tight!
+ Pipe and pipe-material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)
+ DafStB waterproof concrete guideline: stress class 1 + 2
Specifications
| Iekšējā diametra ID | 250, 100, 125, 150, 200, 300 |
| Dizains | DFW 4, DFW 6, DFW 8 |
| sienas biezums cm | 20, 30, 40, 50, 24, 25, 35, 36,5, 45 |
Sūtiet pieprasījumu vai zvaniet mūsu projektu vadītājam, ja jums ir jautājumi par to, kā mēs varam palīdzēt ar mūsu hidroizolācijas risinājumiem.
