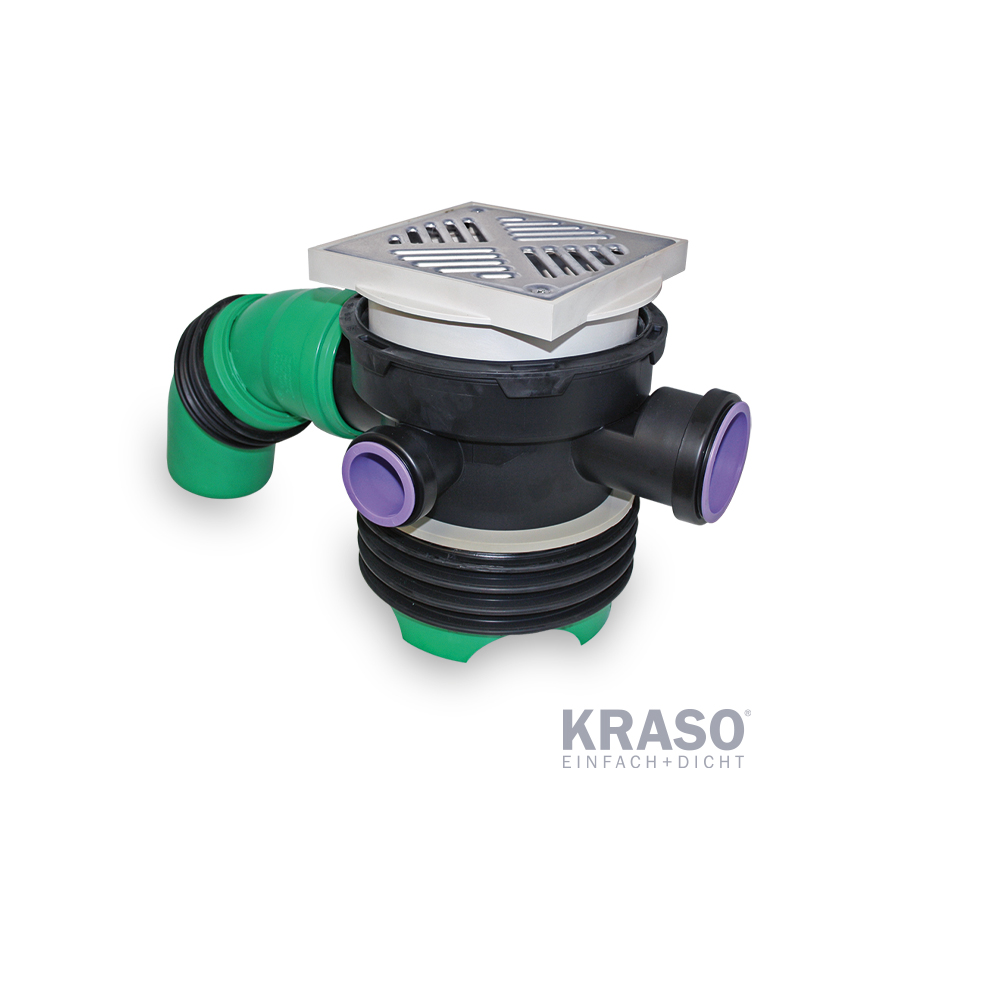

KRASO Basement Drain - KG 2000 (piece)
For installation in areas without traffic and for the connection of up to 3 intake pipes, for the drainage of grey water, drainage capacity: 1,8 l/s, with water pressure tight surrounding, thermally welded KRASO 4 Seal, lateral KRASO Drainage Bows DN 110 with KRASO 3 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
For a dry basement
+ KRASO Basement Drain with integrated, removable backwater and odour stopper!
+ For the connection of up to 3 intake pipes
+ Drainage capacity: 1,8 l per second!
+ With height adjustable and rotatable insert frame from 30 to 60 mm
+ Either with plastic or stainless steel grate
+ With water pressure tight surrounding, thermally welded KRASO 4 Seal: water pressure tight up to 10 bar!
+ Also available in KG 2000: made of polypropylene (PP), mineral- filled, smooth walls, long-lasting
+ DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
SPECIFIKĀCIJAS
| Folijas atloka | bez folijas atloka, ar folijas atloku |
| Tips | plastmasas režģis, nerūsējošā tērauda režģis |
