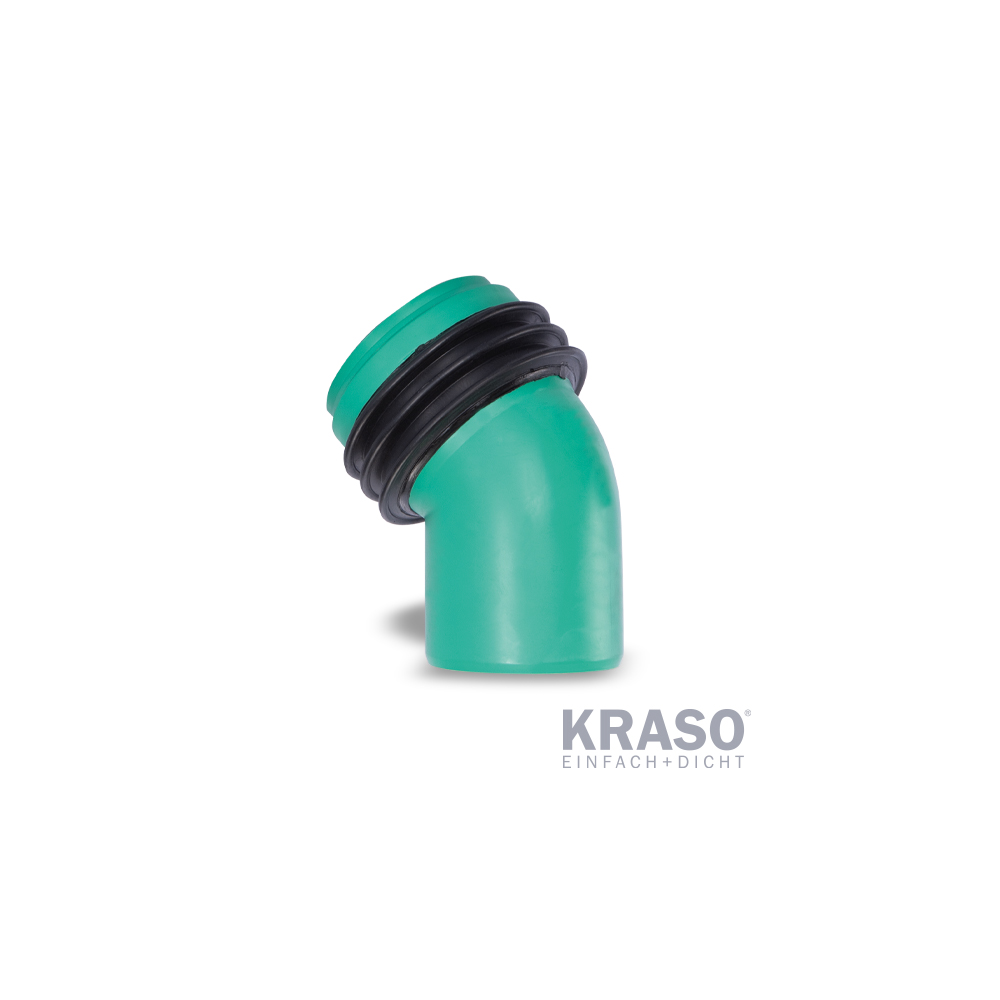

KRASO 15°| 30°| 45° Bend - KG 2000 (piece)
In accordance with DIN EN 14758, for installation in waterproof concrete walls for the connection to KG 2000 pipes, with water pressure tight surrounding, thermally welded KRASO 4 Seal and formed plug-in sleeve on one side | DafStB waterproof concrete guideline: stress class 1 + 2
Slip-on-sleeve with KRASO 4 Seal
+ The surrounding KRASO 4 Seal is joined to the pipe penetration force-fit this prevents creep or slippage. Due to the special geometry our KRASO 4 Seal produces a grip with the concrete.
+ Altogether this results in a water pressure tightness up to 10 bar - MPA-tested! The KRASO 4 Seal also protects against the naturally occurring nobel gas radon and by this prevents a concentration of the radioactive gas in indoor spaces.
+ All pipe penetrations are also available as KG 2000 with thermally welded KRASO 4 Seal.
+ DafStB waterproof concrete guideline: stress class 1 + 2
Specifications
| Diametrs DN | 110, 125, 160, 200, 250, 315, 400, 500 |
| Liekums | 15 °, 30 °, 45 ° |
Sūtiet pieprasījumu vai zvaniet mūsu projektu vadītājam, ja jums ir jautājumi par to, kā mēs varam palīdzēt ar mūsu hidroizolācijas risinājumiem.
