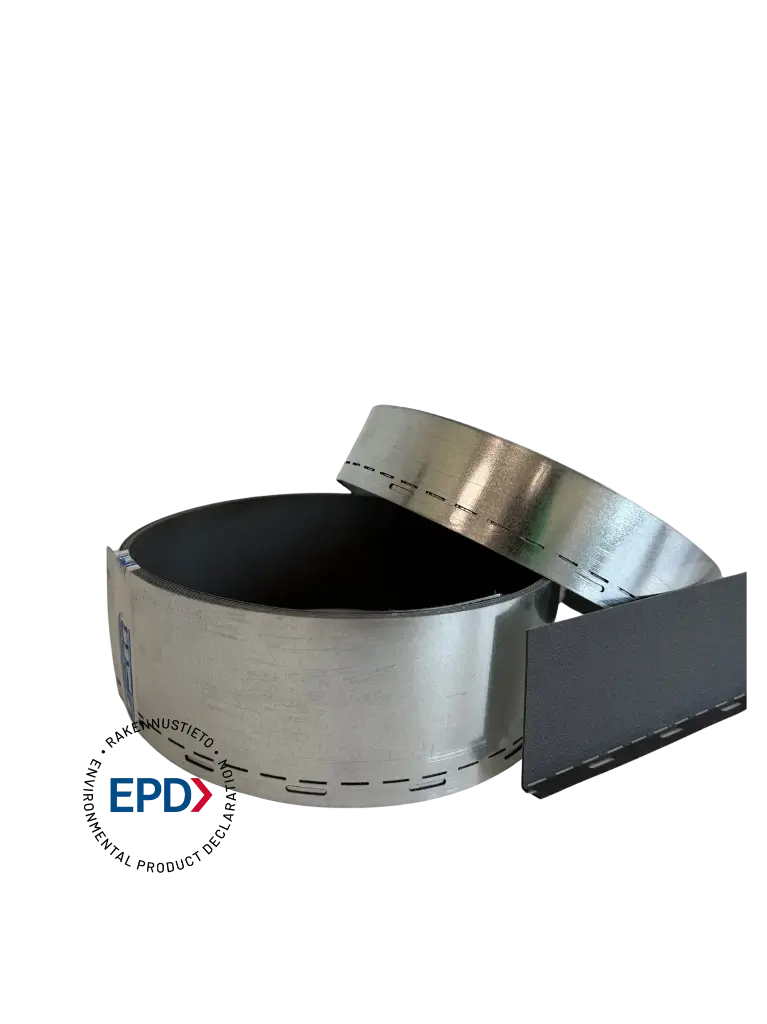

WPM METAL SHEET WATERSTOP R/L

WPM METAL SHEET WATERSTOP R/L

https://lva.primostar.eu/web/image/product.template/8416/image_1920?unique=776a8d7
Universal construction joint sheet with polymer coating

APPLICATIONS:
WPM® Metal Sheet Waterstop (construction joint profile) R-L is used for waterproofing construction joints against pressurized water in various underground reinforced concrete structures. Typical applications include wall-to-floor, wall-to-wall, slab-to-slab, and wall-to-ceiling construction joints. Common areas of use are underground parking garages, tanks, and similar structures.

PROPERTIES:
  • Special polymer coating – elastic and non-reactive with water
  • Polymer coating forms a homogeneous bond with concrete upon curing
  • Installable directly into fresh Concrete
  • Universal – suitable for both straight (R) and L-profiles
  • Can be combined with expansion joint tapes
  • Watertight up to 24 m (2.4 bar), officially tested by TalTech University – Test No. 372-A/19
  • Tested for watertightness up to 15 bar – Test Report No. 1/2024
  • Manufactured in Estonia
SPECIFICATIONS:
  • Steel sheet: galvanized steel
  • Sheet width: as selected
  • 20 mm bent edge on one side
  • Sheet thickness: approx. 0.5 mm
  • Coating: as selected
  • Temperature resistance: -35°C to +75°C
  • Installation temperature: no limitations
PACKAGE:
All coatings
Steel strips in rolls: 3 x 7.5 m elements, connection clips, and glues included

286,85 € 286.853 EUR 286,85 € Netto

Not Available For Sale

(12,75 € / Jednostki)
  • width
  • coating
  • Salespackaging
  • Marka

Ta kombinacja nie istnieje.

WPM
Skontaktuj się z nami
Related Documents:
WPM METAL SHEET WATERSTOP UNIVERSAL R-L EST (P).pdf WPM METAL SHEET WATERSTOP UNIVERSAL R-L ENG.pdf


  • Special coating, elastic, not reactive with water
  • The mineral coating turns homogeneous with concrete
  • Can be installed directly into the fresh concrete
  • Can be installed with installation fixers
  • Easy to connect with deformation PVC joint tapes
  • Официально протестировано в Университете TalTech – Тест № 372-A/19
  • Обеспечивает водонепроницаемость до 2,4 бар
  • Toodetud Estonia


WPM® METAL SHEET WATERSTOP 125R is used to waterproof construction joints like floor-wall, wall-wall, floor-floor, and wall-ceiling against pressurized water in various below-grade reinforced concrete structures. The most common use areas are parking houses, water tanks, etc.

Start with the customer – find out what they want and give it to them.

Ehitusvuukidesõlmed

Here, you can find all construction nodes that we watertight with our materials, such as floor-wall, wall-ceiling, crack inducing waterstop and etc...

Vaata rohkem

Paigaldusvideo

Vaata, kui lihtne on paigaldada vuugiplekki põranda-seina konstruktsiooni töövuuki.




References

Tehtud tööde lehelt leiad rohkem projekte, kus oleme kasutanud töövuugiprofiili.

Rohkem tehtuid töid


Упаковки
  • 1m
  • 30 pcs



Упаковки
  • 1m
  • 30 pcs



Упаковки
  • 1m
  • 30 pcs


Specyfikacja

width 155+20, 125+20, 65+20
coating polymer coating, polymer coating + protective film, bitumen + bitumen coating, bitumen coating, Suitable for drinking water, mineral + mineral coating
Salespackaging Box (3x7,5m), Box (4x7,5m)
Marka WPM
