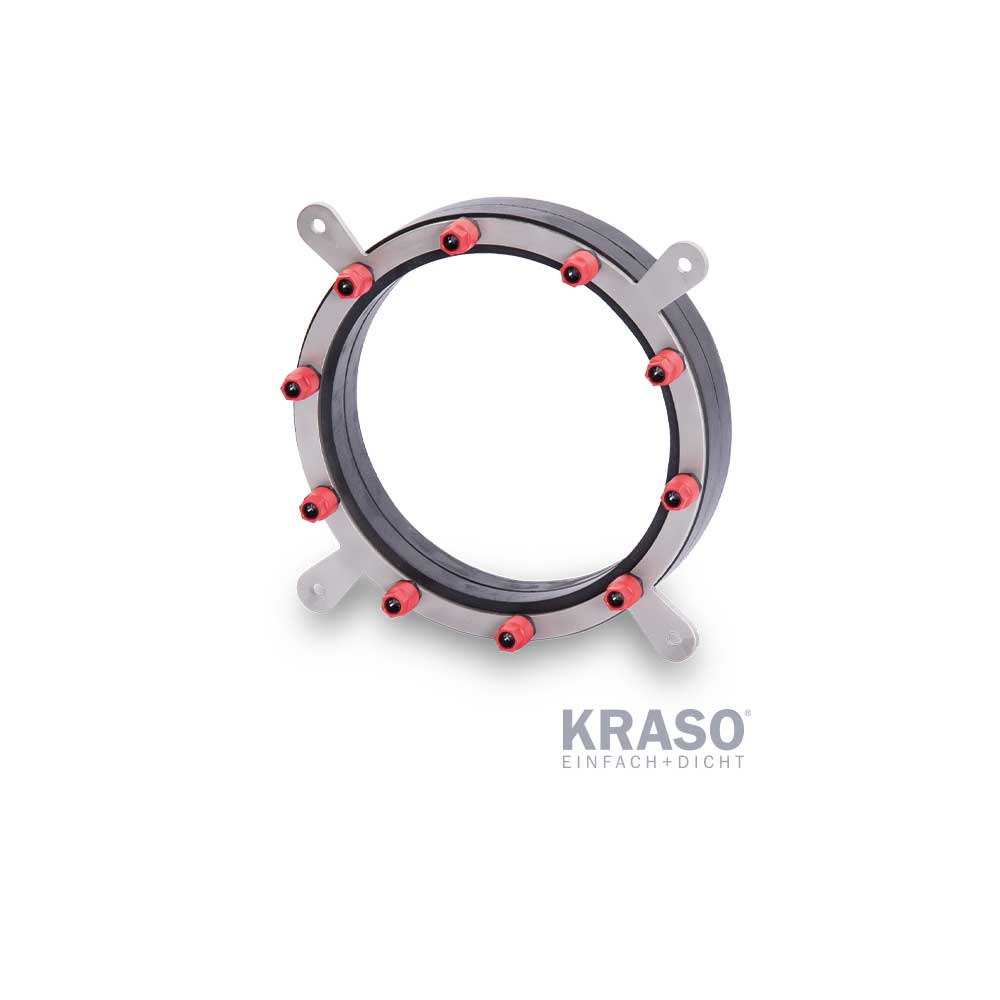

KRASO Sealing Insert Type FIX (piece)
for installation of pipes, with mounting bracket for fixing to the wall, Torque Control Nut KRASO DKM, non-corrosive stainless steel V2A, single sealing, against pressing water up to 1 bar, 20 mm seal (KRASO Type ED/FIX), double sealing, against pressing water up to 3 bar, 40 mm seal (KRASO Type DD/FIX) | DafStB waterproof concrete guideline: stress class 1 + 2
Simply just better
+ For core drillings or casings
+ KRASO Sealing Insert quality: 5 mm thick clamping plates made of non-corrosive stainless steel V2A, a specially developed rubber mixture with even better sealing characteristics, welded-on studs instead of through bolts, more studs for an even pressure distribution
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ Tested gas-tight according to DIN EN 13611 (chapter 7.12) proven by the DVGW research centre at the Engler-Bunte-Institute (EBI) of the Institute for Technology in Karlsruhe
+ MPA-tested: protects reliably against pressurised water up to 10 bar!
+ Gas- and odour-tight – high-quality in terms of TA-Air!
+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!
+ Certified with the quality seal of the FHRK e. V.
+ KRASO Sealing Insert Configurator - simple and fast: configure the matching sealing insert online or via our app
Specifications
| Serdes cauruma diametrs vai KRASO apvalks mm | 80, 100, 125, 150, 200, 250, 300, 400, 500 |
| Caurules vai kabeļa diametrs mm | 22 - 35, 32 - 35, 40 - 43, 48 - 50, 60 - 63, 75 - 77, 78 - 80, 88 - 90, 108 - 110, 114 - 118, 123 - 125, 133 - 135, 139 - 140, 158 - 160, 168 - 170, 177 - 180, 200, 210, 219, 225, 250, 273, 280, 315, 326, 400, 429, 450 |
| ED/FIX - DD/FIX | ED/FIX, DD/FIX |
Sūtiet pieprasījumu vai zvaniet mūsu projektu vadītājam, ja jums ir jautājumi par to, kā mēs varam palīdzēt ar mūsu hidroizolācijas risinājumiem.
